To make available of all major and technologically advanced Products, spares, Components and smart flow control gadgets to meet current requirements of pump manufacturers in India.
To facilitate Indian pump industry to improve the overall efficiency by introducing most modern pumping intelligence from USA, Europe and China.
To Play vital role in Indian pump Industry for producing pumps and systems at par with international standards and to make Indian brands technically compete with world’s leading brands.

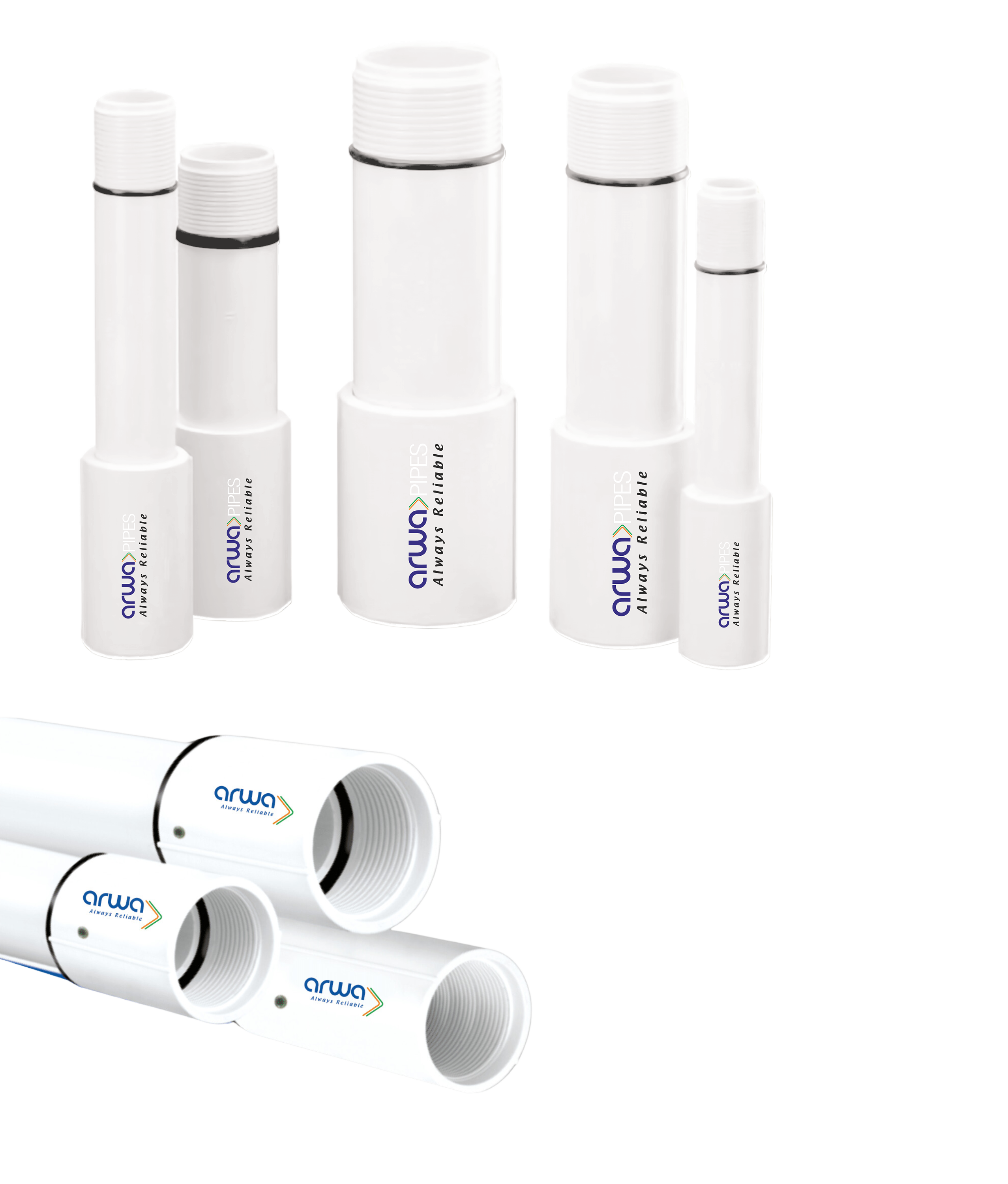

Our uPVC Column Pipes offer superior strength, corrosion resistance, and durability for borewell and submersible pump applications. Designed for smooth water flow and easy installation, they ensure reliable performance with minimal maintenance. Ideal for agricultural, industrial, and domestic use, these pipes provide a cost-effective and efficient deep well solution.
| Types | Sizes | Max Installation Depth | Max Pressure Rating | Max Ambient Temp |
|---|---|---|---|---|
| Primo ++ | 1", 1.25" | 125m/400ft | 12.5kg/cm² | 70°C |
| Nano | 1" to 2.5" | 150m/500ft | 15kg/cm² | 70°C |
| Medium | 1" to 5" | 210m/700ft | 21kg/cm² | 70°C |
| Standard | 1" to 6" | 260m/850ft | 27kg/cm² | 70°C |
| Heavy | 1.25" to 6" | 350m/1150ft | 35kg/cm² | 70°C |
| Super Heavy | 1.5" to 5" | 350m/1150ft | 35kg/cm² | 70°C |

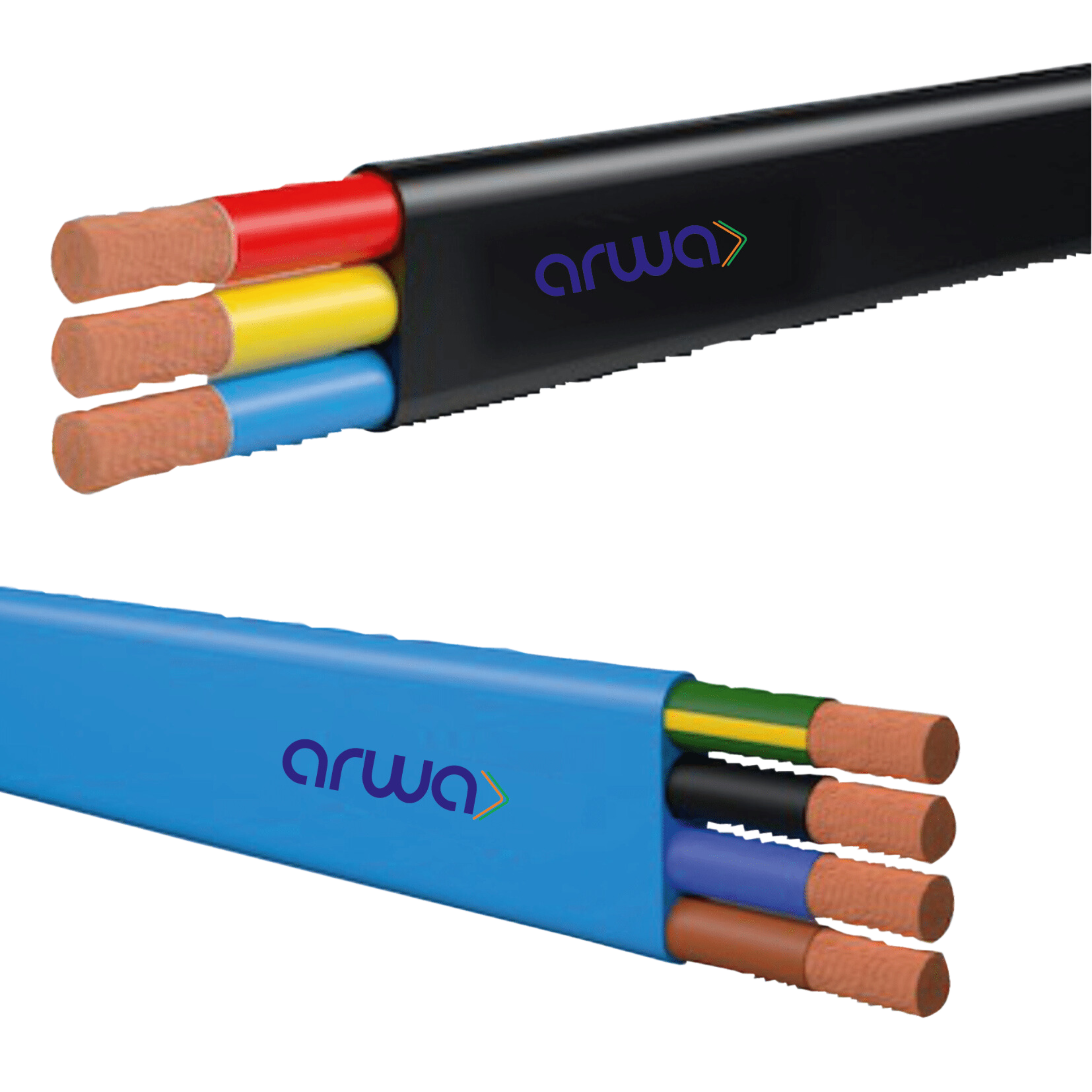

Durable and flexible, our Submersible Flat Cables ensure reliable power transmission for underwater and deep-well applications. Designed for moisture resistance and longevity, they are ideal for borewell pumps and industrial water systems.
| Types | Sizes | Type | Insulation | Sheath | Voltage | Temperature Range |
|---|---|---|---|---|---|---|
| Submersible Cables | 1.5 to 150 Sq.mm | 3 Core / 4 Core, Flat / Round Cables | PVC / EPDM / NBR / H07RNF | PVC / EPDM / Rubber | 1100 V |
-15°C to 70°C (PVC Cables) -40°C to 90°C (EPDM & Rubber Cables) |
| Winding Wires | 0.4 to 3mm | Polywrap (BOPP) / PVC Winding Wires | - | |||
| PV Solar Cables | 1.5 Sq.mm to 240 Sq.mm | XLPO Insulation | Withstands max. temp. of 120°C | - | ||

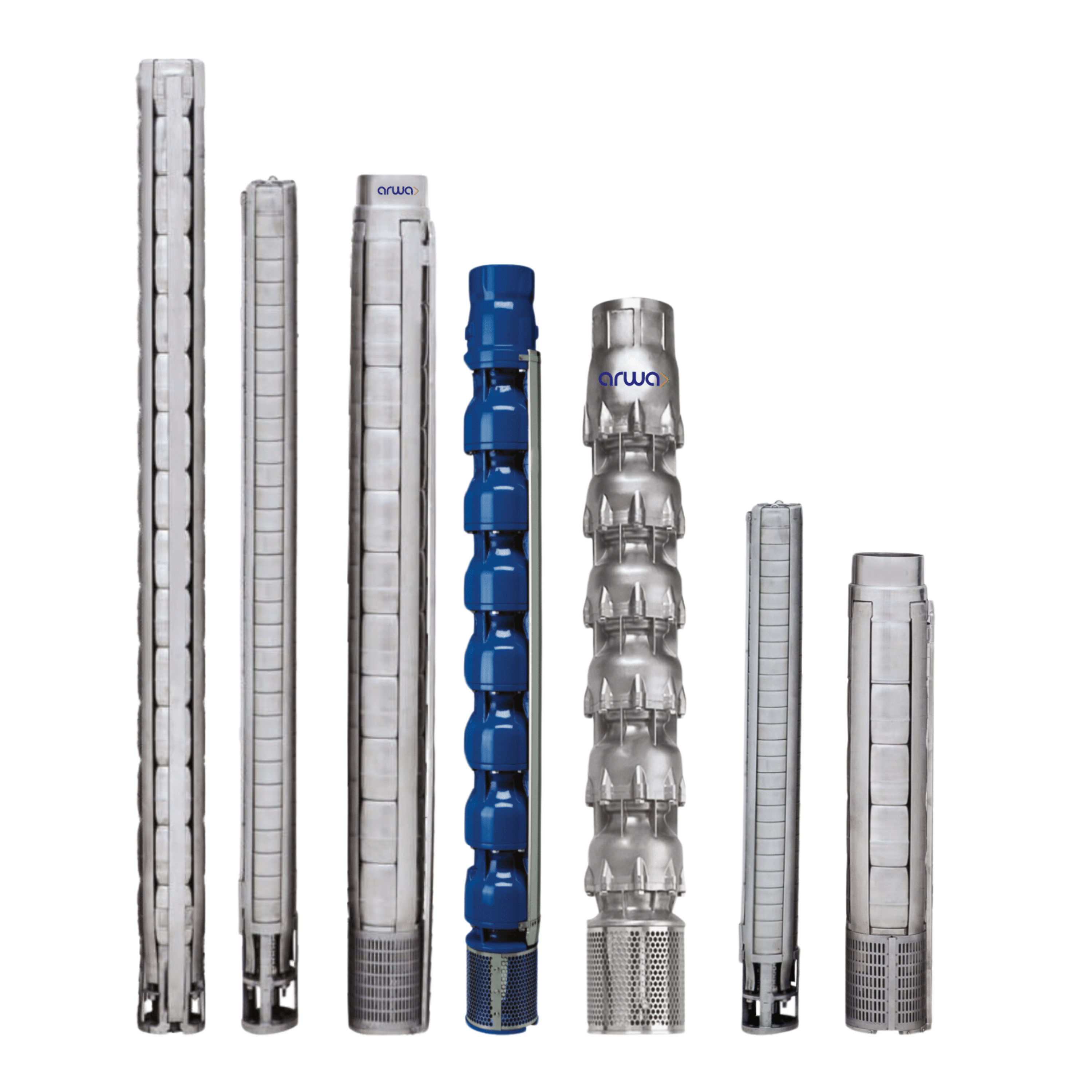

Durable and corrosion-resistant, our SS Submersible Pumps ensure efficient water flow for borewells, industries, and agriculture, delivering reliable performance in tough conditions.
| Nominal Dia | Power Range | Frequency | Version | Speed | Head Max | Flow Max | Outlet Size |
|---|---|---|---|---|---|---|---|
| 4" | 0.37-7.5kW / 0.5-10HP | 480m / 1575ft | 20 ㎥/h | 1¼", 1½", 2" | |||
| 6" | 0.55-63kW / 0.75-85HP | 645m / 2115ft | 76 ㎥/h | 2¼", 2½", 3", 4" | |||
| 50Hz & 60Hz 0.5HP to 300HP |
3" | 0.37-1.1kW / 0.5-1.5HP |
1Ph - 230V up to 3HP 3Ph - 380-415V |
2900 rpm / 3450 rpm | 144m / 472ft | 3 ㎥/h | 1" |
| 8" | 5.5-110kW / 7.5-150HP | 475m / 1558ft | 126 ㎥/h | 4", 5" | |||
| 10" | 9.3-220kW / 12.5-300HP | 488m / 1600ft | 280 ㎥/h | 6" |

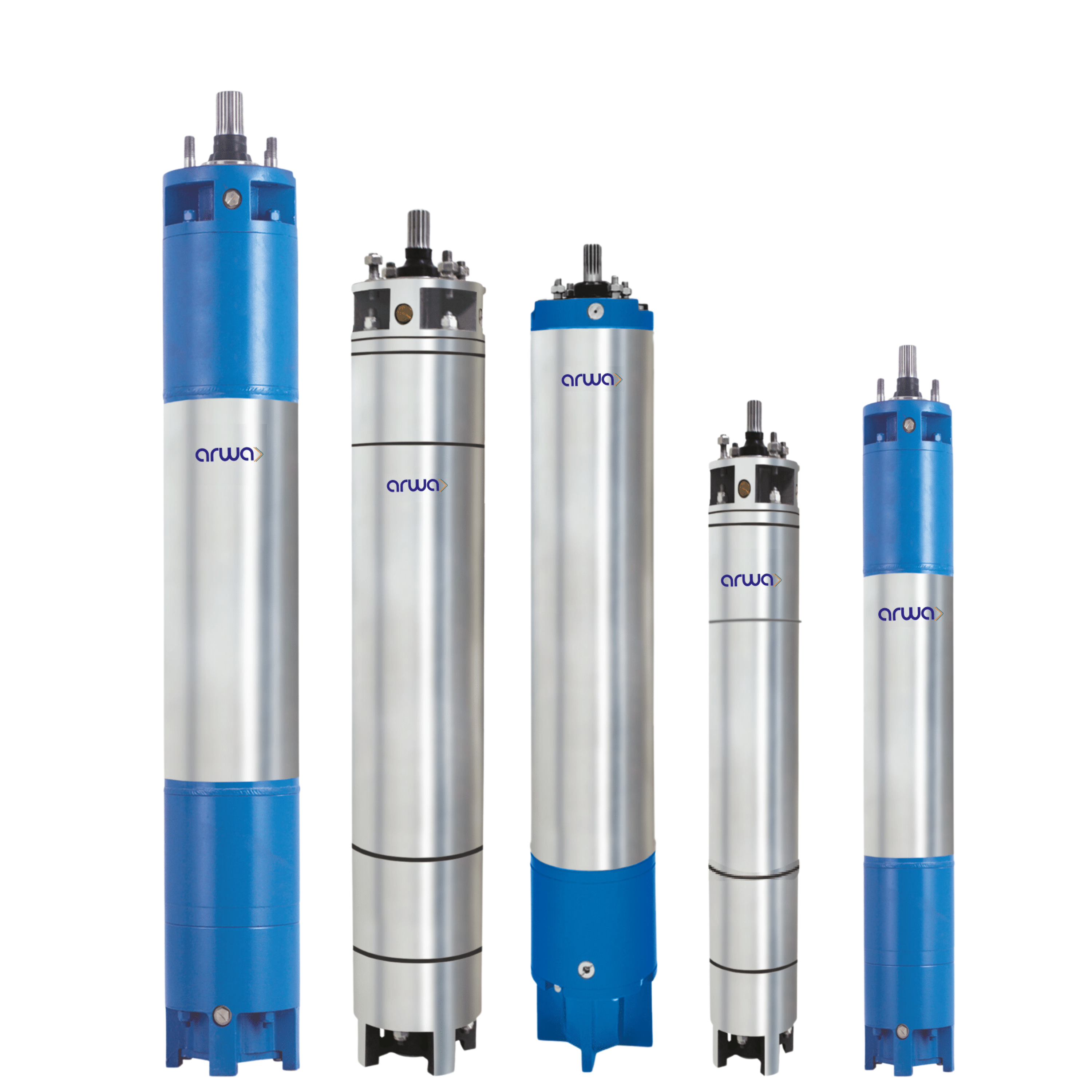

Reliable and efficient, our Submersible Motors deliver high performance for borewells, industrial, and agricultural applications, ensuring durability and long-lasting operation.
| Nominal Dia | Power Range | Frequency | Speed | Version |
|---|---|---|---|---|
| 4" | 50Hz | 2900 rpm | 0.37-7.5kW / 0.5-10HP |
1Ph - 230V - 50Hz / 1Ph - 110 / 220 / 230V - 60Hz 3Ph - 380V - 50Hz / 3Ph - 220 / 230 / 380 / 460V - 60Hz |
| 60Hz | 3450 rpm | |||
| 60Hz | 3450 rpm | |||
| 50Hz | 2900 rpm | |||
| 50Hz | 2900 rpm | |||
| 6" | 60Hz | 3450 rpm | 4-45kW / 5.5-60HP | 11550 - 27500 N |
| 7" | 50Hz | 2900 rpm | 7.5-63kW / 10-85HP | 45000 - 55000 N |
| 8" | 60Hz | 3450 rpm | 37-93kW / 50-125HP | 45000 - 55000 N |
| 10" | 50Hz | 2900 rpm | 81-185kW / 110-250HP | 75000 N |
Reliable and efficient, our Submersible Motors deliver high performance for borewells, industrial, and agricultural applications, ensuring durability and long-lasting operation.

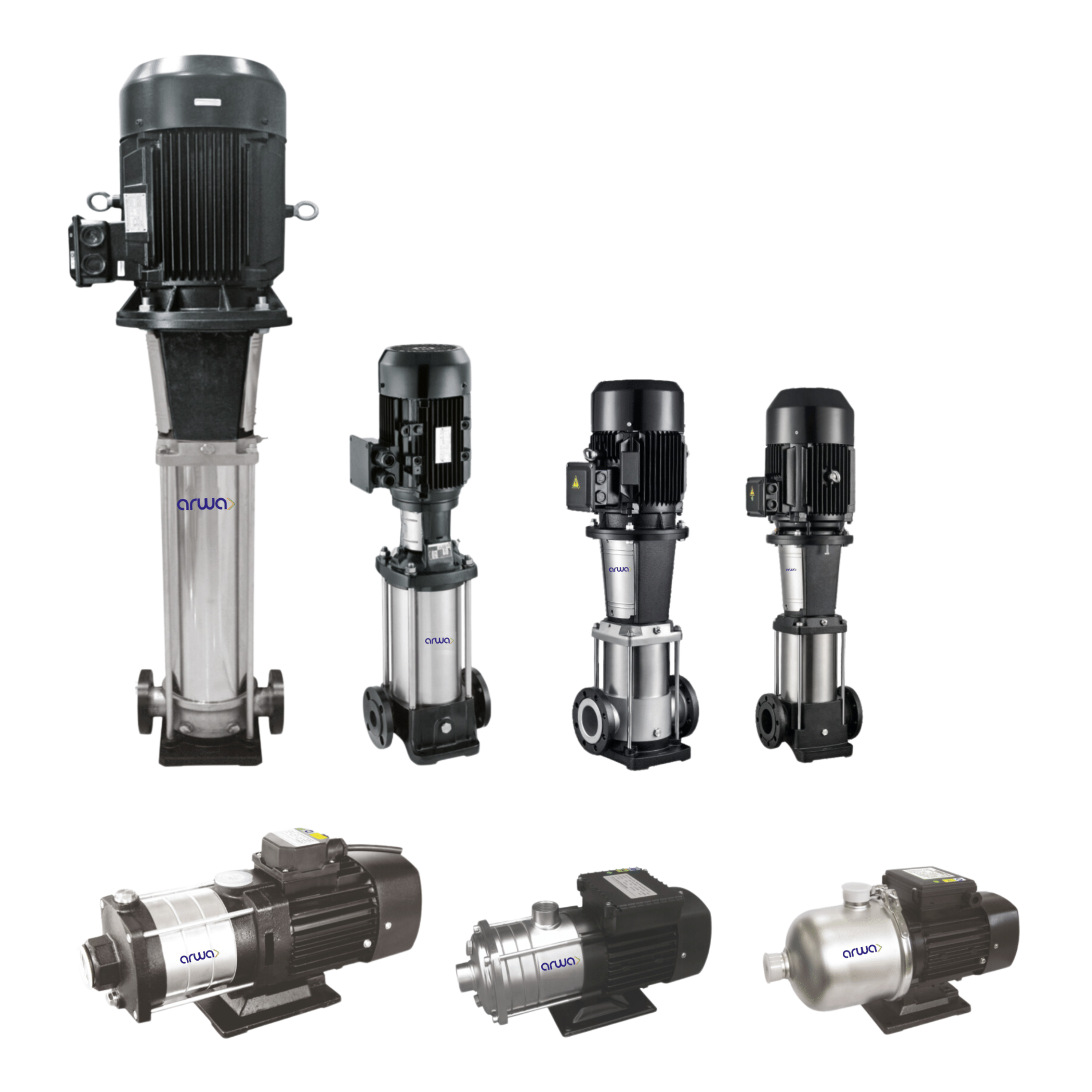

| Vertical Multistage Pumps | ||||||
|---|---|---|---|---|---|---|
| Power Range | 0.37-45KW / 0.5-60 HP | |||||
| Speed | 2900 rpm / 3450 rpm | |||||
| Version | 1Ph - 230V - 50Hz / 1Ph-110/220/230V-50Hz & 60Hz 3Ph - 380V - 50Hz 3Ph - 220 230 380V-50Hz & 60Hz |
|||||
| Nominal Flow | Pump Size | Power Range | Head Max | Flow Range |
|---|---|---|---|---|
| 2㎥/h | 1" or 1¼ | 0.37-3kW | 206m / 675ft | 1-3.5㎥/h |
| 3㎥/h | 1" or 1¼ | 0.37-3kW | 209m / 685ft | 1.2 - 4㎥/h |
| 4㎥/h | 1" or 1¼ | 0.37-4kW | 216m / 798ft | 1-6㎥/h |
| 5㎥/h | 1" or 1¼ | 0.37-5.5kW | 230m / 755ft | 2-8㎥/h |
| 10㎥/h | 1¼ or 2" | 0.37-7.5kW | 222m / 728ft | 2-14㎥/h |
| 15㎥/h | 2" or 21½ | 1.1-15kW | 224m / 735ft | 8-24㎥/h |
| 20㎥/h | 2" or 21½ | 1.1-18.5kW | 234m / 767ft | 8-28㎥/h |
| Nominal Flow | Power Range | Pump Size | Head Max | Flow Range |
|---|---|---|---|---|
| 32㎥/h | 1.5-30kW | 2¼ or 3" | 250m / 820ft | 12-40㎥/h |
| 45㎥/h | 3-45kW | 3" | 309m / 1013ft | 25-55㎥/h |
| 64㎥/h | 4-45kW | 3" or 4" | 214m / 702ft | 30-80㎥/h |
| 90㎥/h | 5.5-45kW | 4" | 168m / 551ft | 55-110㎥/h |
| 120㎥/h | 11-75kW | 5" | 162m / 526ft | 60-150㎥/h |
| 150㎥/h | 11-75kW | 5" | 157m / 510ft | 80-180㎥/h |
| 200㎥/h | 85-110kW | 6" | 157m / 510ft | 100-240㎥/h |
